Industrial Filtration

Quality design, materials and fabrication deliver outstanding performance

  • Exact replacements made for Industrial Filter and U.S. Filter-type and other OEM filters
  • Superior filter cloth with proper tension
  • Precision-fit frames


  • Filters for use in a variety of industrial processing:  chemical, brewing, edible oils, sugar, vinegar and juice
  • Extra heavy support or drainage screens

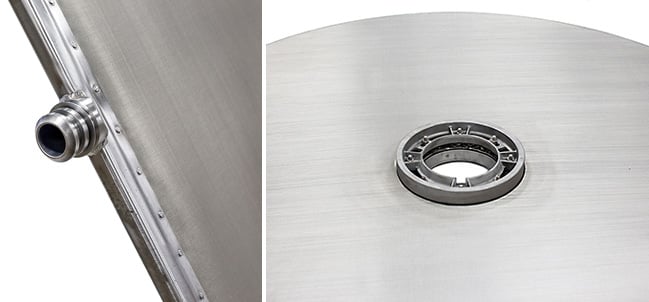

  • Machined outlets
  • Precision-fit frames available riveted, welded or bolted
  • Made in the U.S.A., 75 year's experience

Tech Specs

Filter Cloth Alloy:
  • Stock Type 304 and Type 316 stainless steel
  • Other alloys available by special order
Typical Drainage Screen Mesh:
  • 4" x 4" mesh of .063" or .080" diameter wire
  • 1" x 1" mesh of .177" diameter wire
Typical Frame Construction:
  • Tubular frame riveted
  • Heavy-duty tubular frame riveted
  • T-bar frame with capping channel


Our standard-fabrication filters combine superior materials, components and design to achieve high performance at minimum cost. Filter cloth is calendered to provide a smoother surface or greater density. Calendering allows better filter cake release and improves resistance to scraping. All Cambridge replacement filters are built to OEM specifications.
